Typeform + Customerlabs 1PD Ops Integration

Typeform is a form builder commonly used for lead capture. When Typeform submissions are forwarded to ad platforms such as Meta, insufficient user identity data in the server-side payload results in low event match quality — typically below a score of 4 or 5 — which degrades campaign attribution accuracy.

This integration resolves that by injecting the CustomerLabs UID (cluid) into the Typeform iframe URL as a hidden field value at the time of form load. The cluid is then captured in the submission payload and forwarded to Customerlabs 1PD Ops via a webhook, linking the server-side event to the originating browser session and enabling accurate event unification.

Prerequisites

1. Typeform Admin Access
2. Active CustomerLabs Account

Typeform Configuration

Access the Target Form

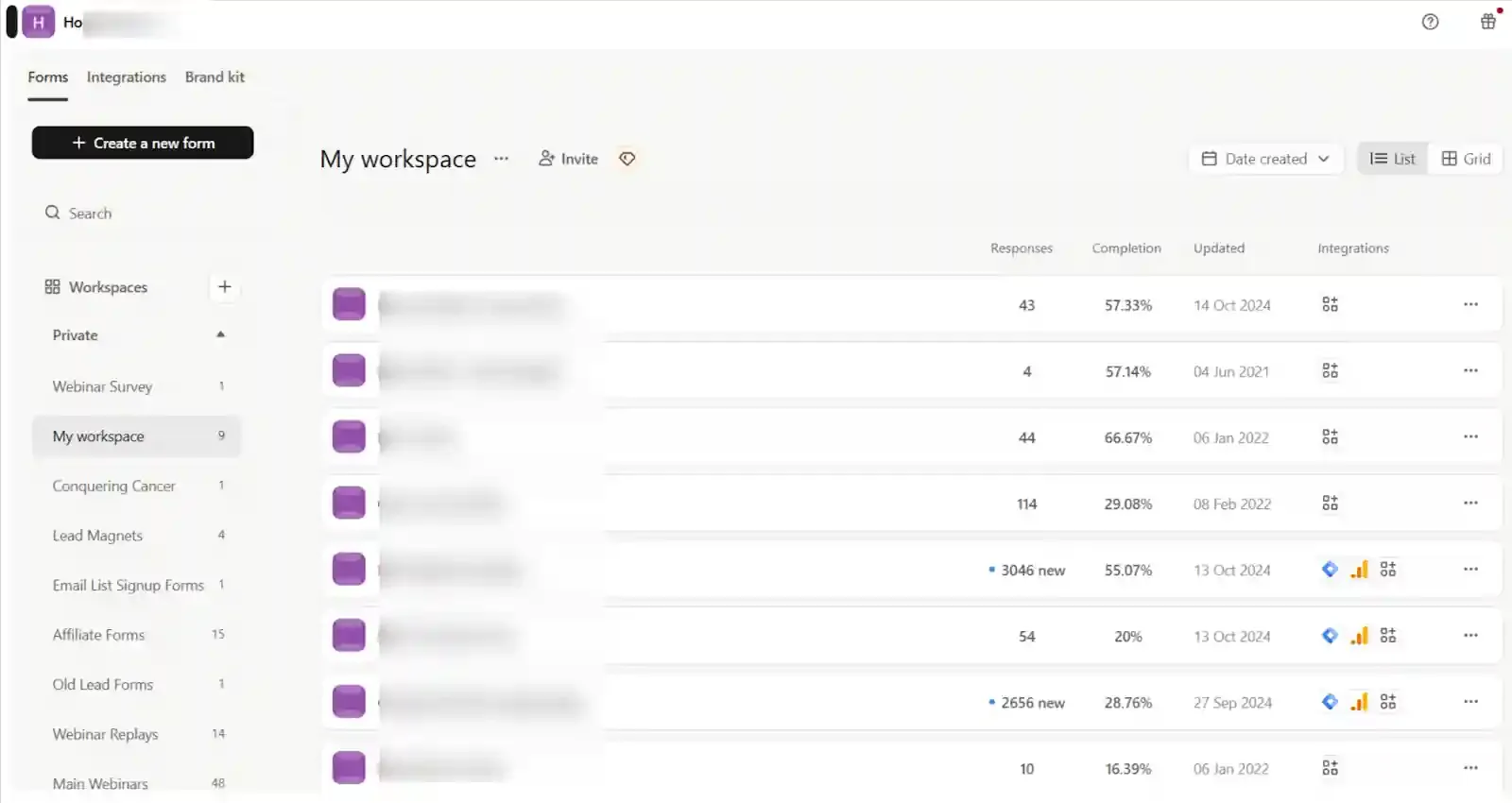

Log in to Typeform with an account that has admin access to publish forms. Open the live form that requires browser-side event tracking.

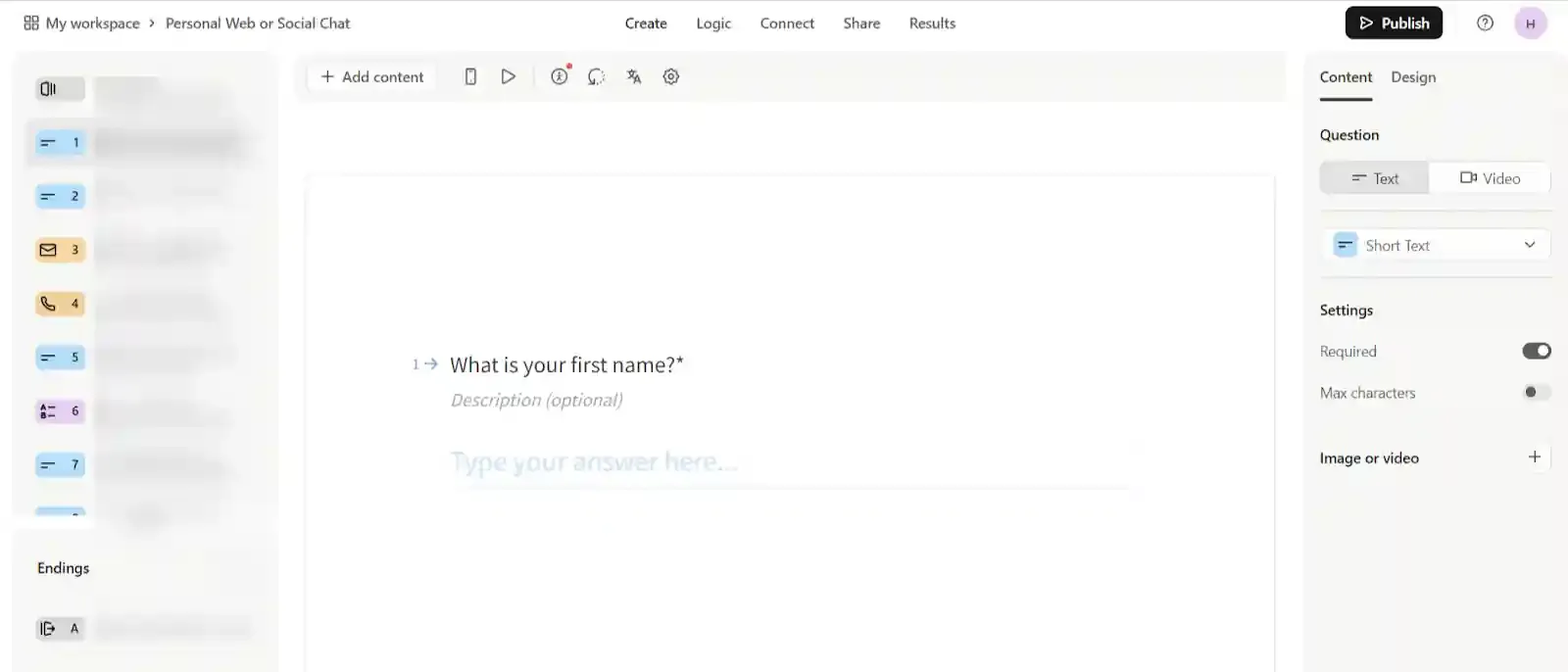

Access Logic Options

In the form editor, navigate to the Logic option in the top navigation bar to enter the form logic configuration screen.

Open Personalize the Data

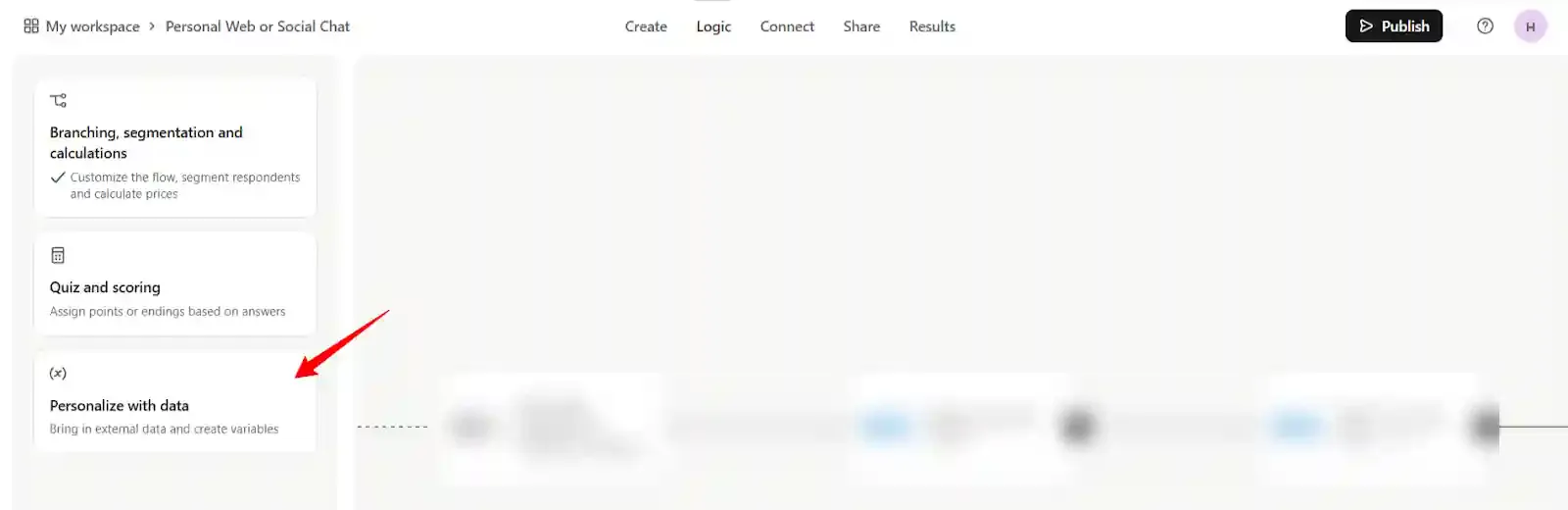

To create a hidden field, click Personalize the Data within the logic screen.

Configure Hidden Fields

The hidden fields configuration screen is displayed. Click Hidden fields to open the field creation panel.

Click the Add new field icon and enter cluid as the field name. This field will receive the CustomerLabs UID value at form load time.

Save and Publish the Form

Confirm the field name — the recommended value is cluid — and save the hidden field configuration. Publish the form to apply the changes to the live version.

CustomerLabs Custom Destination Configuration

Create a Custom Destination

In CustomerLabs, navigate to Destinations, search for Custom Integration, and click View Details.

Name the Integration and Add the Script

Provide a name for the integration and paste the following script into the code editor.

JavaScript

(function() {
    if (["/path1/", "/path2/", "/path3/"].includes(window.location.pathname) && window.location.host == "[xyz.com]") {
        var _cltypeform = document.querySelector("iframe#typeform-full");
        if (_cltypeform) {
            var new_url = document.querySelector("iframe#typeform-full").src + "#cluid=" + CLabsgbVar.generalProps.uid;
            _cltypeform.src = new_url
        }
    }
})()

The script targets the Typeform iframe embedded on the page and appends the cluid value as a URL fragment. This causes Typeform to capture the cluid as the value for the hidden field configured in the previous section.

Note

Replace "/path1/", "/path2/" with the pathname of the page where the Typeform is embedded.

To retrieve the pathname, open the browser developer tools on the form page and run the following in the Console:

window.location.pathname

Note

Replace "[xyz.com]" with the hostname of the page where the Typeform is embedded.

To retrieve the hostname, run the following in the browser Console:

window.location.hostname

Verifying the CLUID Capture

Submit a test entry through the live form. In Typeform, navigate to the form responses or webhook test panel and confirm that the cluid field is populated in the submission payload.

Once the cluid is confirmed in the form submission, proceed to configure the webhook destination in Customerlabs 1PD Ops.

Configuring a Custom Source in Customerlabs 1PD Ops

In CustomerLabs, navigate to the Sources tab and select Custom Source to create a new webhook-based source.

Create the Webhook Source

Provide a name for the source. Customerlabs 1PD Ops generates a unique webhook URL based on the source name. Copy this URL — it will be used to configure the webhook in Typeform.

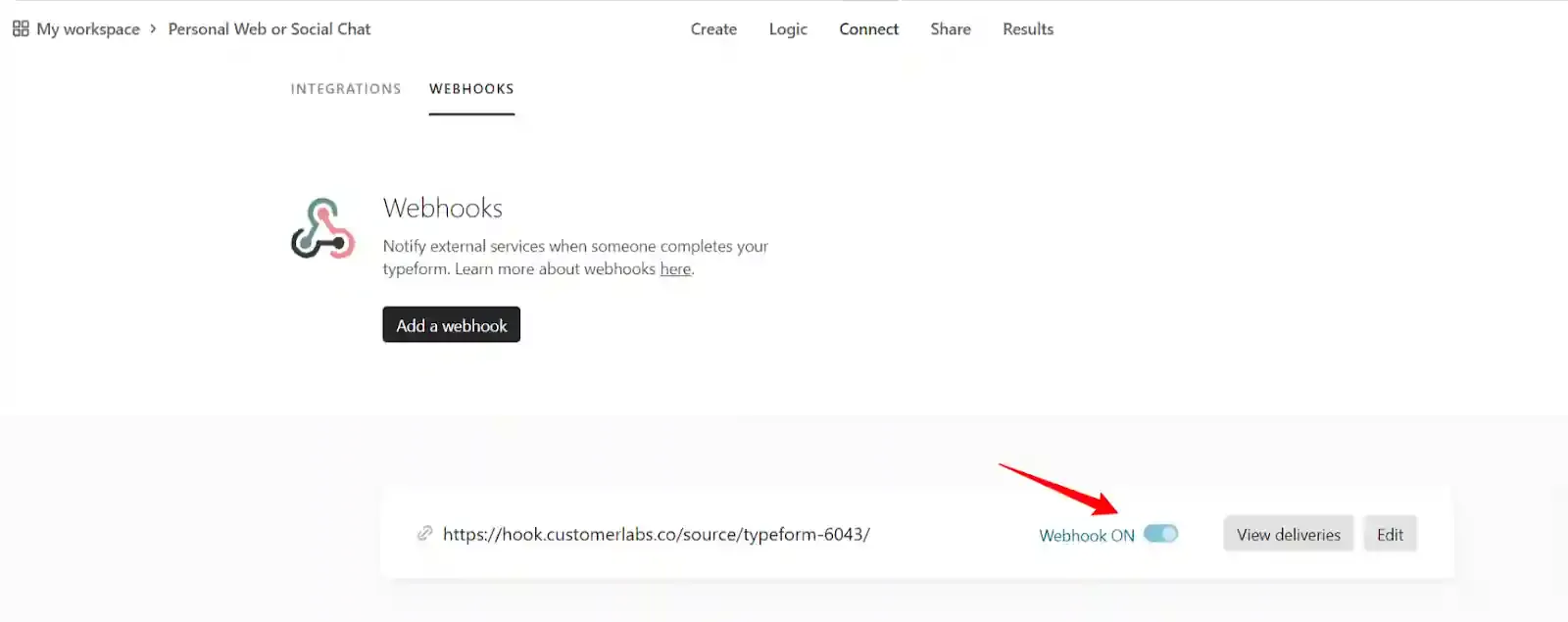

Configure the Webhook in Typeform

In the Typeform form editor, navigate to the Connect tab and open the Webhooks section. Paste the CustomerLabs webhook URL, save the webhook, and enable the webhook toggle to begin forwarding submission data to Customerlabs 1PD Ops.

Verify Incoming Data

After completing the Typeform and CustomerLabs configuration, submit a test form entry. In CustomerLabs, navigate to the source and open the incoming data log to verify that the cluid is present in the received payload. Once confirmed, the form submission data will be unified with the corresponding browser session in Customerlabs 1PD Ops.

Configuring a Workflow

A Workflow processes the raw data received from a source and transforms it into structured event data. Workflows apply field mappings, filters, and event configurations. Multiple workflows can be created per source, and each workflow runs continuously, updating user profiles in real time.

Workflow Setup

Naming the Workflow

Assign a descriptive name that reflects the data being processed.

Example: A workflow receiving lead submissions from Typeform can be named cl_leads or lead_registration.

Workflow Delay

Configure a workflow delay when multiple workflows are attached to the same source. Without a delay, all workflows receive the incoming payload simultaneously. Under concurrent execution, Customerlabs 1PD Ops may create separate user records across workflows before the first workflow has committed the new user identity to the database. Setting a delay ensures that user identity is resolved before subsequent workflows process the same event.

Selecting Sample Data

To configure event mappings, a sample payload must be available. Trigger a test form submission to populate the sample data panel. Up to five samples can be fetched at a time.

Note

When selecting a sample, verify that the payload contains no fields with null values and confirm that the cluid is present in the source log. Customerlabs 1PD Ops does not process fields with null values. Pass an empty string ("") for any required fields that may lack a value.

Event Configuration

Event Name

Select the event name from the dropdown or define a custom event name. For Typeform lead submissions, use a custom event name such as cl_leads or cl_registration.

User Identity Mapping

Map the cluid hidden field as the primary user identifier. The cluid links the server-side form submission to the originating browser session, enabling unification of browser and server-side events in Customerlabs 1PD Ops.

Up to three user identifiers can be configured per workflow, including external IDs. Customerlabs 1PD Ops stores these identifiers to build an enriched, unified user profile.

User Traits

Map all user-level attributes from the Typeform submission under User Traits. These traits are forwarded to connected destinations and are required for accurate audience targeting and personalization.

Common traits to map include first_name, last_name, email, phone, and company. For destination-specific requirements — such as forwarding an email address to an email platform like Klaviyo — the relevant trait must be explicitly mapped in this section.

User Traits Mapping

Source Logs

Source Logs record all payloads received by the source webhook prior to workflow processing. Logs may have a display latency of up to 10 minutes. Access logs by navigating to the source and clicking Logs.

Each inbound message is assigned a unique message ID for traceability across workflows and the event manager.

Data In Log

Displays the raw payload received from the Typeform webhook in JSON format.

Data Out Log

Displays the processed payload forwarded to configured workflows, along with the generated message ID.

Workflow Logs

Each workflow maintains its own log, showing how incoming events are transformed — including user traits, event attributes, group traits, external IDs, and group identities.

Workflow Status Messages

The following status messages may appear in the Data Out log:

Status	Description
Mapping not found	The workflow is in draft mode and has not been published.
Filter condition failed	The incoming event did not satisfy the configured filter criteria and was not processed.
User ID missing / Account ID missing	The payload does not contain a required user or account identity field. The event will not be processed further.
Data not found	The event is still being processed. Under high load, processing may take up to 10 minutes.

Destinations

Once events are processed through workflows, the resulting data can be forwarded to connected third-party destinations to support advertising, analytics, and marketing automation use cases.
