A fast, highly scalable, cost-effective, and fully managed cloud data warehouse for analytics, with built-in machine learning. Create your own data marketing lake with BigQuery by storing all your customer event data in one place. CustomerLabs can send the event data into BigQuery with a single click without having to write any code.

To sync your data with BigQuery, you have to follow the following three steps:

1. Create a project if not already created and enable BigQuery API for the selected project.
2. Add IAM reference ID as a BigQuery user in your Google Cloud account.
3. Enable Billing
4. Copy the project ID and paste it in CustomerLabs

Create a Project and Enable BigQuery API

1. Log in to your Google Cloud Platform,  select a project, or create one if you haven’t created one.

2. Copy the project ID of the new project/relevant project that you want to connect.

3. Check if the BigQuery API is enabled for the chosen project.

BigQuery is automatically enabled in new projects. To activate BigQuery in an existing project, enable the BigQuery API.

Add IAM reference ID

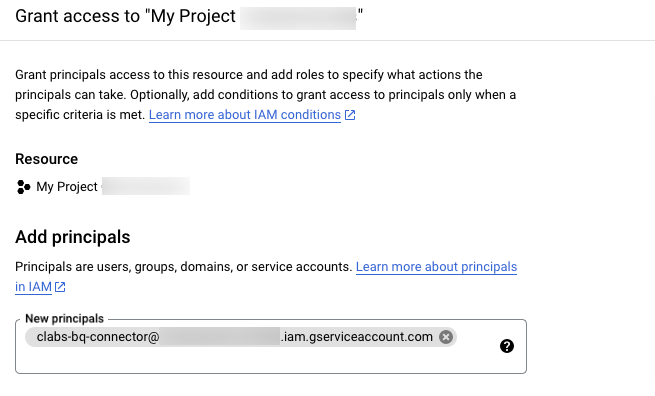

1. Open your Google Cloud platform and navigate to IAM & Admin → IAM → The project you want to connect → Under Permissions, View by principals tab → Grant access

2. In the Add Principals section → paste the Service account ID ([email protected]) under New principals text box.

3. Assign the following roles and click on Save.

• BigQuery Data Owner
• BigQuery Job User

Enable Billing

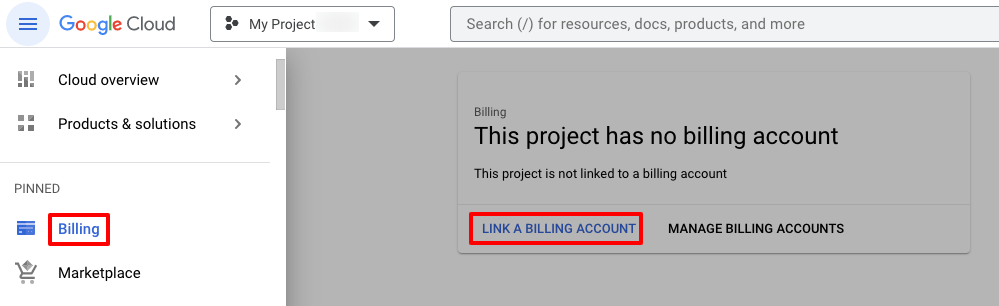

1. If you haven’t enabled billing, navigate to Billing and linked billing account.
2. Make sure, your billing is active.

Note: Billing should be enabled for the project to be active.

Configure the project ID in the CustomerLabs

1. Login to your CustomerLabs account.

2. Navigate to “Destinations” and select BigQuery

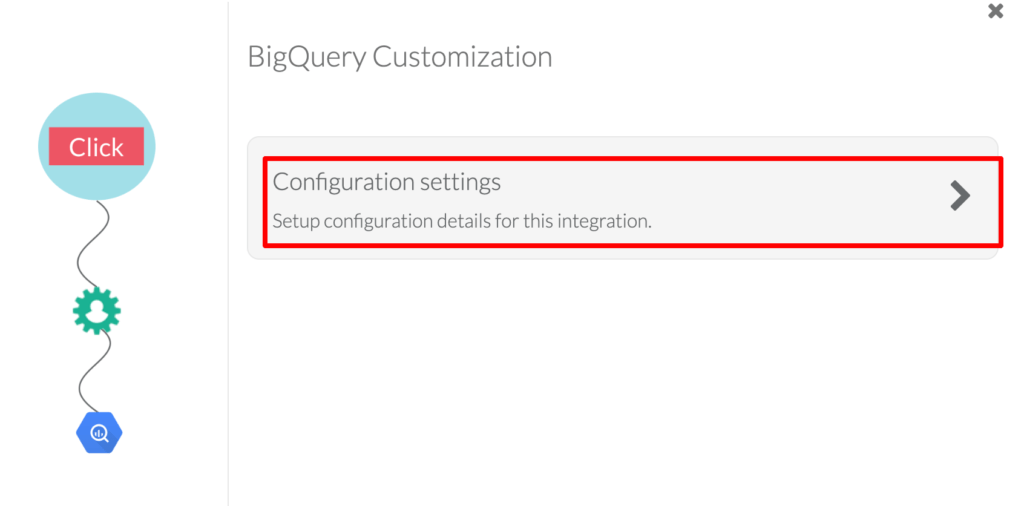

3. You will see a pop-up screen, click on Enable and then go to Configuration settings

4. Now, paste your Google project ID which you had copied from your cloud account → Save Changes

You have successfully connected CustomerLabs with BigQuery for sending your data.

Schema

Table: events_data
field_name	field_type	field_mode	Description	Samples
screen_size (generated field based on IP address)	STRING	NULLABLE	Screen size of the user’s device	1920 x 1080, 1536 x 864
platform (generated field based on IP address)	STRING	NULLABLE	The OS specification of the user’s device	Windows 10, Mac OS X10
country (generated field based on IP address)	STRING	NULLABLE	Country of the user	India, United States
city (generated field based on IP address)	STRING	NULLABLE	City of the user	Chennai, Saint Paul
state (generated field based on IP address)	STRING	NULLABLE	State of the user	Tamil Nadu, Minnesota
postal_code (generated field based on IP address)	STRING	NULLABLE	Postal code of the user	500044
continent (generated field based on IP address)	STRING	NULLABLE	Continent of the user	Asia, North America
visitor_type	STRING	NULLABLE	The value will be a New user or a Returning user	New, Returning
session_id	STRING	NULLABLE	The session_id of the event	CL-5bh3y984u23uefhf
source	STRING	NULLABLE	The value will be ‘direct’ or ‘google search’	direct, google search
source_type	STRING	NULLABLE	The value will be ‘organic’ or ‘unknown’	organic, unknown
page_title	STRING	NULLABLE	The title of the page visited by the user	Festive Sale|Buy Now| XXXX
page_url	STRING	NULLABLE	The URL of the page visited by the user	www.sample.com
device	STRING	NULLABLE	The value will be ‘mobile device’ or ‘desktop’	mobile device, desktop
ip_address	STRING	NULLABLE	IP Address of the user	123.123.123.123
location (generated field based on IP address)	STRING	NULLABLE	latitude and longitude	37.7510 , -97.8220
timezone (generated field based on IP address)	STRING	NULLABLE	Timezone of the user	Asia/Kolkata, America/Chicago
user_traits	RECORD	REPEATED	first_name, last_name, email, and phone_number are accurate fields, explicitly collected from the users and displayed as key-value pairs. Fields such as location, city, state, country, and timezone are derived from ip_address.	user_traits
key	STRING	NULLABLE
value	STRING	NULLABLE
group_traits	RECORD	REPEATED	Future use	NA
key	STRING	NULLABLE
value	STRING	NULLABLE
cl_utm_params	RECORD	REPEATED	utm_source, utm_medium will be categorised as cl_utm_params and displayed as key-value pairs	cl_utm_params
key	STRING	NULLABLE
value	STRING	NULLABLE
cl_other_params	RECORD	REPEATED	Query parameters from the URL will be fetched and stored as key-value pairs. Since UTM parameters are managed by cl_utm_params, they won’t be included in the cl_other_params field.	cl_other_params
key	STRING	NULLABLE
value	STRING	NULLABLE
event_attributes	RECORD	REPEATED	Event attributes provide additional context or details about an event such as source, status etc., and will be categorised as event_attributes displayed as key-value pairs with type.	event_attributes
key	STRING	NULLABLE
value	STRING	NULLABLE
type	STRING	NULLABLE
products	RECORD	REPEATED	This field is available only for e-commerce. Standard events provided by CustomerLabs are:cl_added_to_cartcl_added_to_wishlistcl_category_viewedcl_checkout_madecl_product_clickedcl_product_viewedcl_purchasedcl_removed_from_cartThe products with properties such as product_name, product_price etc., involved in a particular event will be displayed as key-value pairs with type.	product_traits
product_traits	RECORD	REPEATED
key	STRING	NULLABLE
value	STRING	NULLABLE
type	STRING	NULLABLE
external_ids	RECORD	REPEATED	Other user identification parameters used by different platforms are stored as External IDs. These can be appended to a user which helps unify the user details in CustomerLabs and identify the user across multiple platforms based on the IDs collected.Apart from fetching standard user identifiers such as email & phone number, the system also supports the collection of External User IDs The following external IDs identify_by_email, identify_by_phone, audiencelab_id, google_analytics__session_id, google_analytics__client_id, facebook___fbp, facebook___fbc, customerlabs_user_id and other external IDs will be displayed as key-value pairs with type	external_ids
key	STRING	NULLABLE
value	STRING	NULLABLE
type	STRING	NULLABLE
group_external_ids	RECORD	REPEATED	Future use	NA
key	STRING	NULLABLE
value	STRING	NULLABLE
type	STRING	NULLABLE
additional_info	RECORD	REPEATED	Details about the user’s first_touch (first interaction), device, session, platform, and other information will be displayed as key-value pairs.	additional_info
key	STRING	NULLABLE
value	STRING	NULLABLE
segments	RECORD	REPEATED	Future use	NA
segment_id	STRING	NULLABLE
segment_name	STRING	NULLABLE
added_at	TIMESTAMP	NULLABLE
Table: users_data
field_name	field_type	field_mode	Description	Samples
user_id	STRING	NULLABLE	The userID given to a user by CustomerLabs	cl3967trkvb12gh35mm802-999k-42k9-6bvd-nj9034msgfr7
traits	RECORD	REPEATED	first_name, last_name, email, and phone_number are accurate fields, explicitly collected from the users and displayed as key-value pairs. Fields such as location, city, state, country, and timezone are derived from ip_address.	user_traits
key	STRING	NULLABLE
value	STRING	NULLABLE
external_ids	RECORD	REPEATED	Other user identification parameters used by different platforms are stored as External IDs. These can be appended to a user which helps unify the user details in CustomerLabs and identify the user across multiple platforms based on the IDs collected.Apart from fetching standard user identifiers such as email & phone number, the system also supports the collection of External User IDs The following external IDs identify_by_email, identify_by_phone, audiencelab_id, google_analytics__session_id, google_analytics__client_id, facebook___fbp, facebook___fbc, customerlabs_user_id and other external IDs will be displayed as key-value pairs with type.	external_ids
key	STRING	NULLABLE
value	STRING	NULLABLE
type	STRING	NULLABLE
additional_info	RECORD	REPEATED	Details about the user’s first_touch (first interaction), device, session, platform, and other information will be displayed as key-value pairs.	additional_info
key	STRING	NULLABLE
value	STRING	NULLABLE
segments	RECORD	REPEATED	Future use	NA
segment_id	STRING	NULLABLE
segment_name	STRING	NULLABLE
added_at	STRING	NULLABLE
inserted_at	TIMESTAMP	NULLABLE	Time the user data is ingested in the DB.	2024-06-07T14:30:03.433Z
Table: anonymous_users_data
field_name	field_type	field_mode	Description	Samples
user_id	STRING	NULLABLE	The userID given to a user by CustomerLabs	cl3967trkvb12gh35mm802-999k-42k9-6bvd-nj9034msgfr7
anonymous_user_id	STRING	NULLABLE	The ID is given to an anonymous user by CustomerLabs. This user will be converted as a known user when the user shares credentials in other sessions. The obtained information is stitched with the user ID for user unification.	cl9090tjkdew789854fgg-0hkl-k0w9-6bvd-klbh234598gf
inserted_at	TIMESTAMP	NULLABLE	Time the user data is ingested in the DB.	2024-06-07T14:30:03.433Z

Sample data

user_traits

[
  {
    "key": "email",
    "value": "[email protected]"
  },
  {
    "key": "first_name",
    "value": "test"
  },
  {
    "key": "last_name",
    "value": "last"
  }
]

cl_utm_params

[
  {
    "key": "utm_source",
    "value": "[email protected]"
  },
  {
    "key": "utm_medium",
    "value": "test"
  },
  {
    "key": "utm_campaign",
    "value": "last"
  }
]

cl_other_params

[
  {
    "key": "gad_source",
    "value": "2"
  },
  {
    "key": "gclid",
    "value": "Cxfgcgyugyhuivdshue89732r89uy298r2y37uhr38wyhdixh8he38rh8d32ywhf2u289uerdjiw9"
  },
  {
    "key": "user-agent",
    "value": "Mozilla/5.0 (Linux; Android 10; K) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/116.0.0.0 Mobile Safari/537.36"
  }
]

event_attributes

[
  {
    "key": "event_from",
    "value": "website"
  },
  {
    "key": "event_source",
    "value": "js_helper"
  },
  {
    "key": "event_status",
    "value": "active"
  }
]

product_traits

[
  [ //Product 1
    {
      "key": "product_id",
      "value": "1",
      "type": "number"
    },
    {
      "key": "product_name",
      "value": "test",
      "type": "string"
    },
    {
      "key": "product_price",
      "value": "100",
      "type": "number"
    }
  ],
  [ //Product 2
    {
      "key": "product_id",
      "value": "2",
      "type": "number"
    },
    {
      "key": "product_name",
      "value": "test",
      "type": "string"
    },
    {
      "key": "product_price",
      "value": "100",
      "type": "number"
    }
  ]
]

external_ids

[
  {
    "key": "client_id",
    "value": "js8628376773",
    "type": "google_analytics"
  },
  {
    "key": "_fbc",
    "value": "js786486283752523",
    "type": "facebook"
  }
]

additional_info

[
  {
    "key": "platform",
    "value": "Android 6"
  },
  {
    "key": "browser",
    "value": "Googlebot 2"
  },
  {
    "key": "browser_language",
    "value": "en-US"
  },
  {
    "key": "screen_size",
    "value": "412 x 732"
  }
]

Sample Query

Sample 1 : Query list of known and anonymous user ids who performed an event.

SELECT user_id, count(user_id) FROM `[Dataset Id].events_data` WHERE action = "pageview" GROUP BY user_id

Sample 2 : Query with identity resolution (merging anonymous and known user data) using `[Dataset Id].anonymous_users_data`

WITH
anonymous_user_list AS (
    SELECT user_id, anonymous_user_id FROM (
        SELECT user_id, anonymous_user_id, ROW_NUMBER() OVER( PARTITION BY anonymous_user_id ORDER BY inserted_at DESC ) AS top
            FROM anonymous_users
    ) WHERE top = 1
)

SELECT user_id, count(user_id) FROM (
      SELECT IFNULL(aul.user_id, t0.user_id) AS user_id FROM `[Dataset Id].events_data` t0
        LEFT JOIN anonymous_user_list AS aul ON aul.anonymous_user_id = t0.user_id
        WHERE action = "pageview"
) GROUP BY user_id

Sample 3 : Query to get user information based on the event

WITH
anonymous_user_list AS (
    SELECT user_id, anonymous_user_id FROM (
        SELECT user_id, anonymous_user_id, ROW_NUMBER() OVER( PARTITION BY anonymous_user_id ORDER BY inserted_at DESC ) AS top
            FROM `[Dataset Id].anonymous_users_data`
    ) WHERE top = 1
),

event_users_list AS (
    SELECT user_id FROM (
        SELECT IFNULL(aul.user_id, t0.user_id) AS user_id FROM `[Dataset Id].events_data` t0
            LEFT JOIN anonymous_user_list AS aul ON aul.anonymous_user_id = t0.user_id
            WHERE action = "Added to cart"
    ) GROUP BY user_id
),

users_master AS (
    SELECT * FROM (
        SELECT *, ROW_NUMBER() OVER( PARTITION BY user_id ORDER BY inserted_at DESC )  AS top FROM `[Dataset Id].users_data`
    ) WHERE top = 1
)

SELECT * FROM event_users_list AS  eul
    INNER JOIN users_master AS  um  ON eul.user_id =  um.user_id

Notes:

Salesforce to BigQuery Data Integration: You can send data from your Salesforce CRM to BigQuery through CustomerLabs CDP seamlessly.

Hubspot to BigQuery Data Integration: You can sync your first party data in Hubspot to BigQuery through CustomerLabs first-party data CDP without much effort.
